ALTRAD Belle GPX CTE Power Generators

Key Features

Single voltage 110V-only output for safe site use
Suitable for 110V site conditions and Tin 12 fusion welding applications
Robust, stackable protective frame on standard models
Protective belly plate on non-wheeled models for use on soft ground
High quality, heavy-duty NSM alternator
Full overload and system breaker protection
Steel electrical enclosure with durable screw-in sockets
Oversized 4-point anti-vibration mounts for smoother running
Reliable Honda petrol engines with recoil start and low oil shut-off
Wheeled 5kVA model available for easier on-site manoeuvrability

1 - 3 or 12 months business finance from 0%

3 - 48 months credit, offers at checkout

£654.00 inc VAT (£545.00 ex VAT)

2 Working Day Delivery Or Next Day Express

Select your Options

GPX 2700 CTE - Honda GX200 Petrol

£654.00 inc VAT (£545.00 ex VAT)

GPX 3400 CTE - Honda GX200 Petrol

£742.00 inc VAT (£618.33 ex VAT)

GPX 5000 CTE - Honda GX270 Petrol

£1,080.00 inc VAT (£900.00 ex VAT)

GPX 5000 CTE - Honda GX270 Petrol c/w Wheel Kit

£1,273.00 inc VAT (£1,060.83 ex VAT)

Product Add Ons

Altrad Belle GPX Generator Test Unit (£501.00 inc VAT) (£501.00 inc VAT)

View

Order Summary

Subtotal

Payment Options Available

0% Credit Options

Description
Description
The ALTRAD Belle GPX CTE Power Generator range is designed specifically for 110V site use and Tin 12 fusion welding applications. Built around a heavy-duty, stackable protective frame and a high quality NSM alternator, these open-set petrol generators deliver reliable power in tough site conditions and demanding rental environments. All electrics are fully overload protected and housed in a steel enclosure to shield key components from damage and the elements.
Available in four models – GPX 2700 CTE, GPX 3400 CTE, GPX 5000 CTE and GPX 5000W CTE (wheeled version) – this range offers outputs from 2.7kVA to 5kVA, all with single-voltage 110V-only outputs and dual pole system breakers for added safety. Powered by proven Honda petrol engines with low oil cut-off and mounted on oversized anti-vibration mounts, the GPX CTE series provides smooth operation, long service life and reduced maintenance for contractors and hire fleets.
Key Features
- Single voltage 110V-only output for safe site use
- Suitable for 110V site conditions and Tin 12 fusion welding applications
- Robust, stackable protective frame on standard models
- Protective belly plate on non-wheeled models for use on soft ground
- High quality, heavy-duty NSM alternator
- Full overload and system breaker protection
- Steel electrical enclosure with durable screw-in sockets
- Oversized 4-point anti-vibration mounts for smoother running
- Reliable Honda petrol engines with recoil start and low oil shut-off
- Wheeled 5kVA model available for easier on-site manoeuvrability

Specification

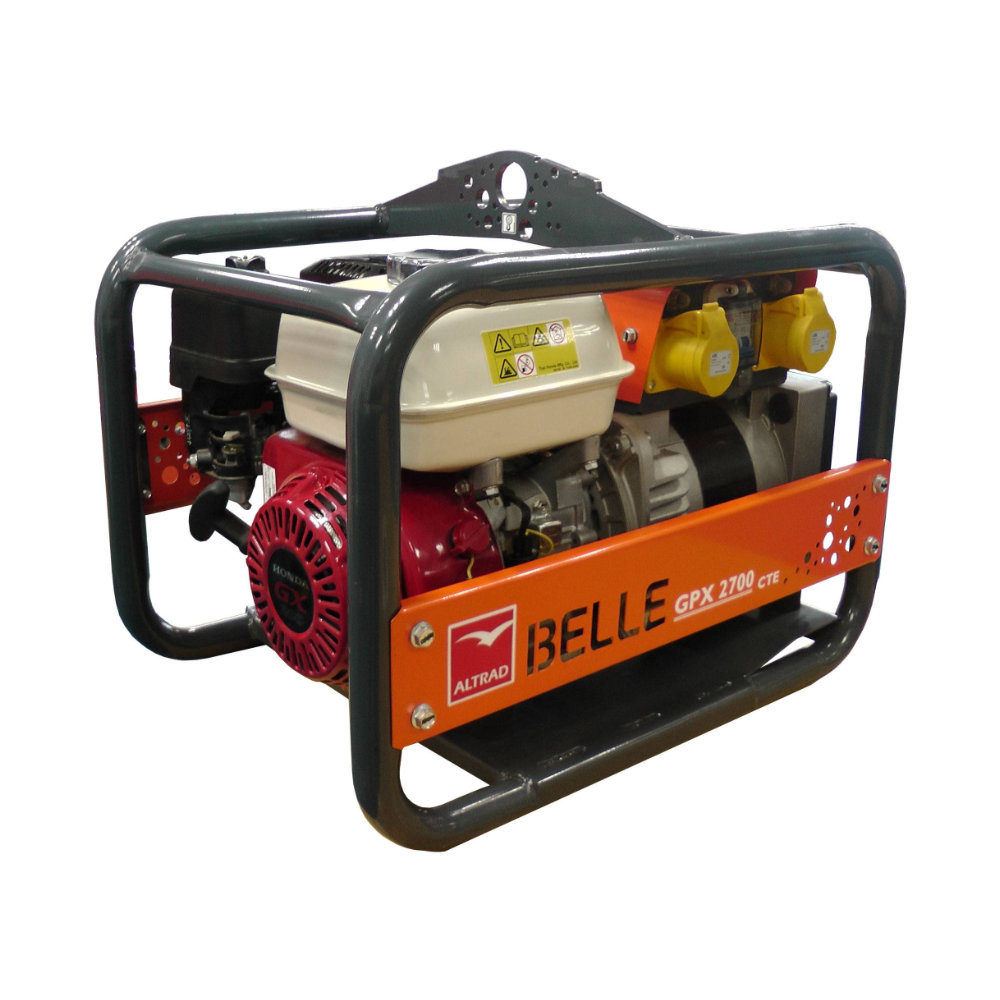

GPX 2700 CTE – 2.7kVA 110V Petrol Generator

Specifications

Feature	Specification
Model	GPX 2700 CTE
Engine	Honda GX200 petrol
Engine Power	4.3 hp / 3.3 kW
kVA Rating	2.7 kVA at 0.8 p.f.
PRP Rating	2.2 kW
Continuous Output	2.0 kW
Voltage Output	110 V single voltage (55 V – 0 – 55 V)
Socket Configuration	2 × 16 A 110 V sockets
Application	110 V site use, Tin 12 fusion welding
Protection	Overload protection, dual pole system breakers, steel enclosure
Frame	Stackable protective frame with belly plate
Anti-Vibration Mounts	Oversized 4-point AV mounts
Dimensions (L × W × H)	618 × 432 × 515 mm
Weight	46 kg

GPX 3400 CTE – 3.4kVA 110V Petrol Generator

Specifications

Feature	Specification
Model	GPX 3400 CTE
Engine	Honda GX200 petrol
Engine Power	4.3 hp / 3.3 kW
kVA Rating	3.4 kVA at 0.8 p.f.
PRP Rating	2.7 kW
Continuous Output	2.5 kW
Voltage Output	110 V single voltage (55 V – 0 – 55 V)
Socket Configuration	2 × 16 A 110 V sockets, 1 × 32 A 110 V socket
Application	110 V site use, Tin 12 fusion welding
Protection	Overload protection, dual pole system breakers, steel enclosure
Frame	Stackable protective frame with belly plate
Anti-Vibration Mounts	Oversized 4-point AV mounts
Dimensions (L × W × H)	618 × 432 × 515 mm
Weight	47 kg

GPX 5000 CTE – 5kVA 110V Petrol Generator (Standard)

Specifications

Feature	Specification
Model	GPX 5000 CTE
Engine	Honda GX270 petrol
Engine Power	6.2 hp / 4.6 kW
kVA Rating	5 kVA at 0.8 p.f.
PRP Rating	4.0 kW
Continuous Output	3.6 kW
Voltage Output	110 V single voltage (55 V – 0 – 55 V)
Socket Configuration	2 × 16 A 110 V sockets, 1 × 32 A 110 V socket
Application	110 V site use, Tin 12 fusion welding
Protection	Overload protection, dual pole system breakers, steel enclosure
Frame	Stackable protective frame with belly plate
Anti-Vibration Mounts	Oversized 4-point AV mounts
Dimensions (L × W × H)	728 × 512 × 595 mm
Weight	64 kg

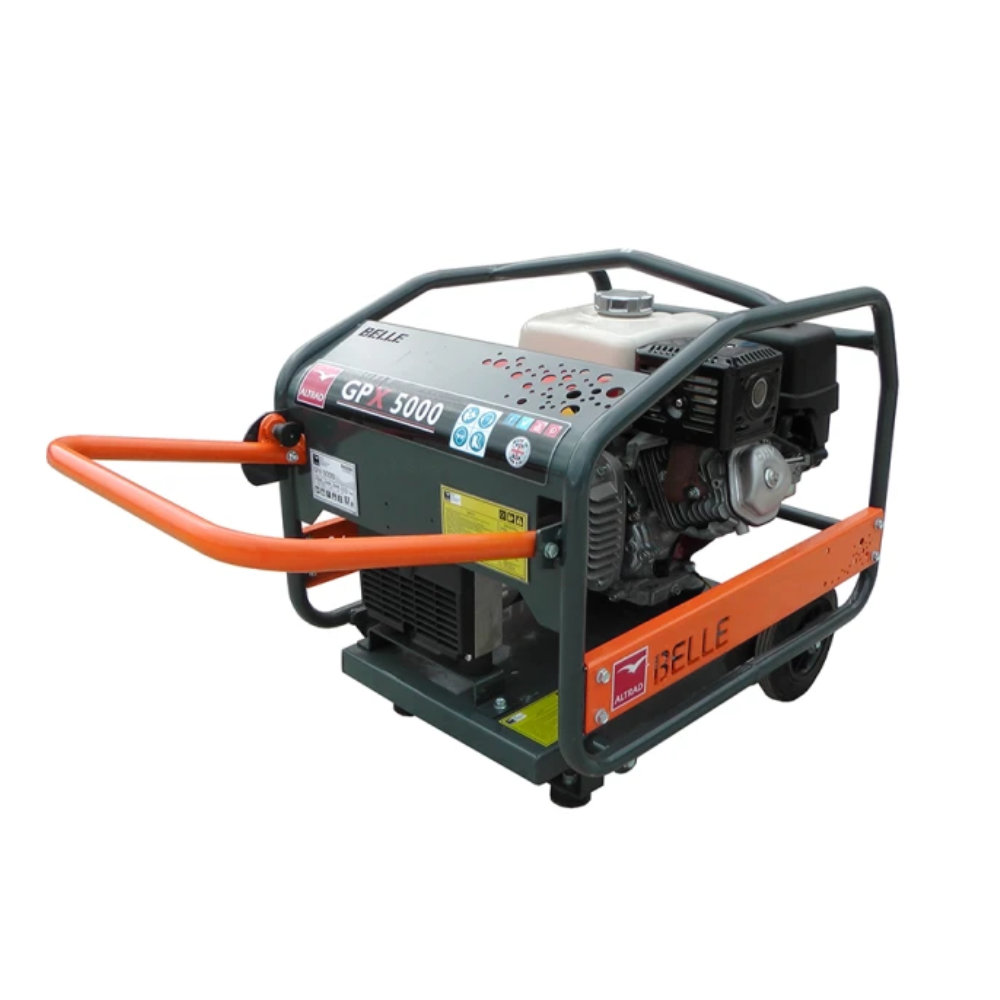

GPX 5000W CTE – 5kVA 110V Petrol Generator (Wheeled)

Specifications

Feature	Specification
Model	GPX 5000W CTE
Engine	Honda GX270 petrol
Engine Power	6.2 hp / 4.6 kW
kVA Rating	5 kVA at 0.8 p.f.
PRP Rating	4.0 kW
Continuous Output	3.6 kW
Voltage Output	110 V single voltage (55 V – 0 – 55 V)
Socket Configuration	2 × 16 A 110 V sockets, 1 × 32 A 110 V socket
Application	110 V site use, Tin 12 fusion welding
Protection	Overload protection, dual pole system breakers, steel enclosure
Frame	Wheeled frame, non-stackable, no belly plate
Mobility	Integrated wheel kit for easier transport
Anti-Vibration Mounts	Oversized 4-point AV mounts
Dimensions (L × W × H)	778 × 552 × 661 mm
Weight	79 kg

Additional Information

Additional information

Model	GPX 2700 – Honda GX200 Petrol, GPX 3400 – Honda GX200 Petrol, GPX 5000 – Honda GX270 Petrol, GPX 5000 – Honda GX270 Petrol c/w Wheel Kit, GPX 2700 CTE – Honda GX200 Petrol, GPX 3400 CTE – Honda GX200 Petrol, GPX 5000 CTE – Honda GX270 Petrol, GPX 5000 CTE – Honda GX270 Petrol c/w Wheel Kit
Brand	ALTRAD Belle
