ALTRAD Belle PCLX Compaction Plates

On Sale

Key Features

Low HAV Levels
Designed to maximise operator safety and allow longer operating periods.
High Travel Speed & Strong Compaction
Patented baseplate design improves manoeuvrability and increases forward travel speed.
Durable, Lightweight Construction
Built for rental and heavy contractor use with a strong tubular frame protecting key components.
Quick-Release Water Tank (Optional)
Features a 12L tank with a simple quick-release mechanism for block paving and dust control.
Oil-Sealed Bearings
Long-life lubricated bearings reduce maintenance and increase durability.
Easy Control & Smooth Operation
Baseplate will not dig in when reversing or turning, offering precise control in tight areas.
Transport-Friendly
Manual handling points and balanced design allow safe and easy lifting.
Multiple Model Options
Available in compact 13″, extended Streetworks versions, wider 16–18″ plates and electric variants.

1 - 3 or 12 months business finance from 0%

3 - 48 months credit, offers at checkout

£1,029.00 inc VAT (£857.50 ex VAT) Usually £1,059.00 inc VAT

2 Working Day Delivery Or Next Day Express

Select your Options

PCLX 32 (13") - 3.2HP

£1,029.00 inc VAT (£857.50 ex VAT)

PCLX 12/40E - 110v 50Hz Electric

£1,100.00 inc VAT (£916.67 ex VAT)

PCLX 12/40E - 230v 50Hz Electric

£1,100.00 inc VAT (£916.67 ex VAT)

PCLX 40 (16") - 3.2HP

£1,097.00 inc VAT (£914.17 ex VAT)

PCLX 32 "STREETWORKS" (13") - 3.2HP

£1,268.00 inc VAT (£1,056.67 ex VAT)

PCLX 16/45E - 110v 50Hz Electric

£1,510.00 inc VAT (£1,258.33 ex VAT)

Product Add Ons

Altrad Belle Detachable Wheel Kit For PCLX Plate Compactors (£126.00 inc VAT) (£126.00 inc VAT)

View

Altrad Belle Block Paving Pad for PCLX Compactors - Paving pad For PCLX 32 (£113.00 inc VAT) (£113.00 inc VAT)

View

Altrad Belle Water Spray System For PCLX Plate Compactor - Water Spray System For PCLX 32 (£255.00 inc VAT) (£255.00 inc VAT)

View

Order Summary

Subtotal

Payment Options Available

0% Credit Options

Description
Description
The ALTRAD Belle PCLX Compaction Plate range is built for professional contractors who need reliable, fast and low-vibration compaction performance. Designed for productivity and operator comfort, the PCLX series uses Belle’s patented baseplate design to deliver excellent travel speed, smooth control and effective compaction across a wide range of materials.
With low hand-arm vibration levels, a protective tubular frame and a lightweight, easy-to-handle build, the PCLX is ideal for block paving, sub-base preparation, pathways, reinstatement work and confined areas. Models are available with petrol Honda engines or electric motors (110v and 230v), with optional water tank and accessory kits.
Key Features
- Low HAV Levels
  Designed to maximise operator safety and allow longer operating periods.
- High Travel Speed & Strong Compaction
  Patented baseplate design improves manoeuvrability and increases forward travel speed.
- Durable, Lightweight Construction
  Built for rental and heavy contractor use with a strong tubular frame protecting key components.
- Quick-Release Water Tank (Optional)
  Features a 12L tank with a simple quick-release mechanism for block paving and dust control.
- Oil-Sealed Bearings
  Long-life lubricated bearings reduce maintenance and increase durability.
- Easy Control & Smooth Operation
  Baseplate will not dig in when reversing or turning, offering precise control in tight areas.
- Transport-Friendly
  Manual handling points and balanced design allow safe and easy lifting.
- Multiple Model Options
  Available in compact 13″, extended Streetworks versions, wider 16–18″ plates and electric variants.
Specification

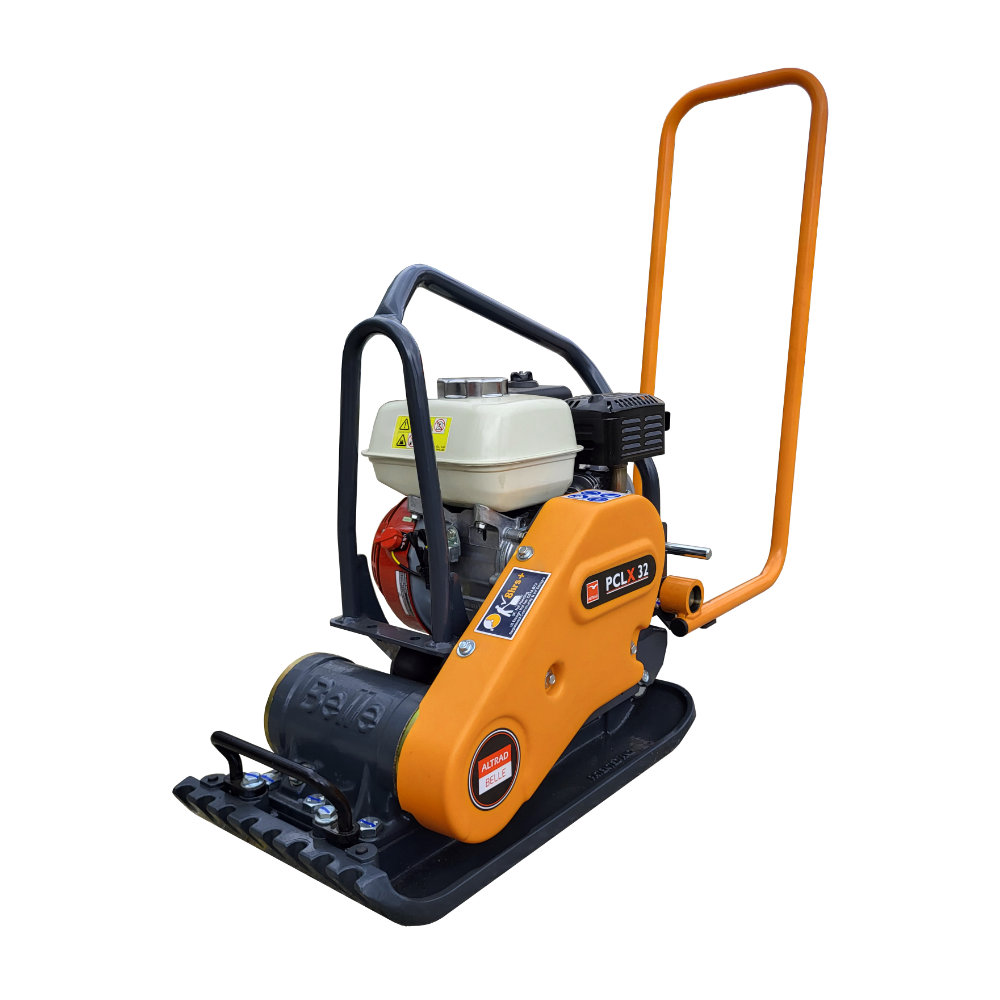

PCLX 32:
Feature Specification
Engine Power (hp) 3.2
Power (kW) 2.4
Plate Size (WxL) (mm) 320 x 417
Static Pressure (kg/m²) 416
Centrifugal Force (kN) 13
Travel Speed (m/min) 20
Vibrations (m/sec²) 2.49
Weight (Kg) 64
PCLX 32 Streetworks:
Feature Specification
Engine Power (hp) 4.8
Power (kW) 3.6
Plate Size (WxL) (mm) 320 x 835
Static Pressure (kg/m²) 1662
Centrifugal Force (kN) 13
Travel Speed (m/min) 18
Vibrations (m/sec²) 2.26
Weight (Kg) 69

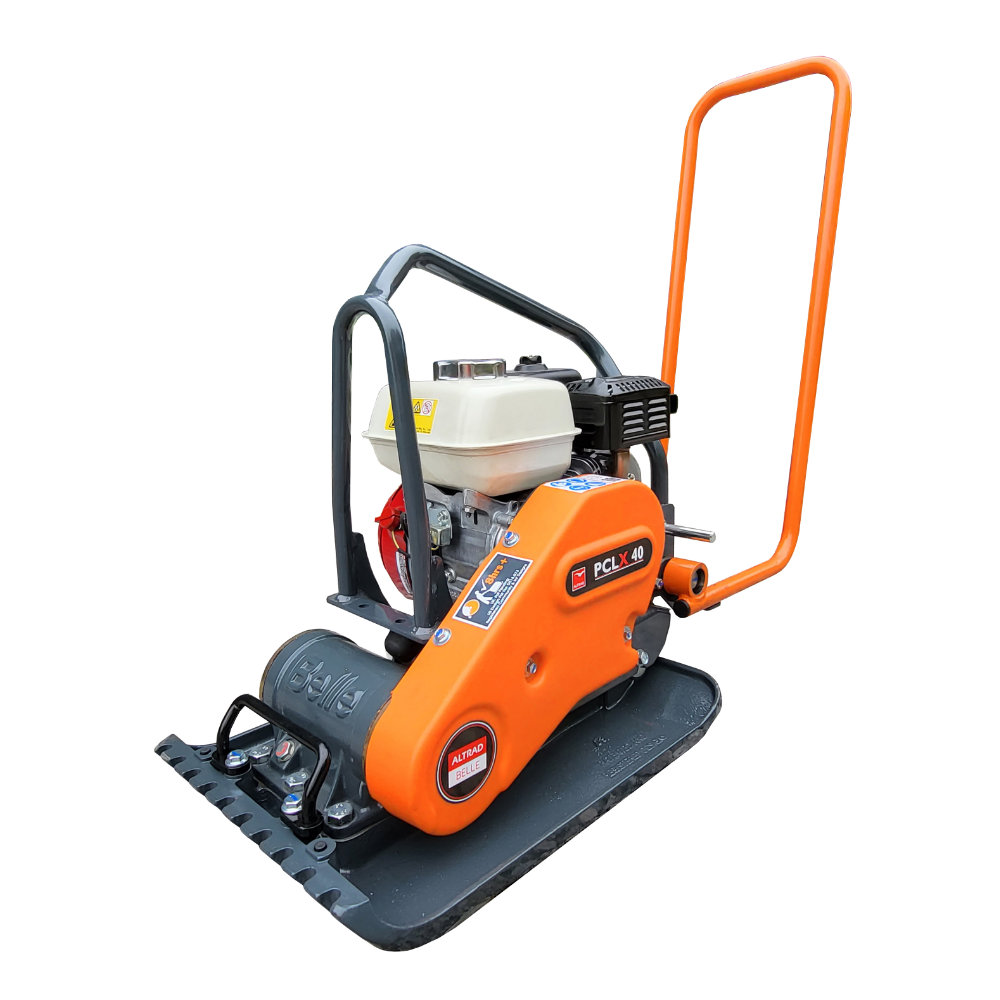

PCLX 40:
Feature Specification
Engine Power (hp) 3.2
Power (kW) 2.4
Plate Size (WxL) (mm) 400 x 574
Static Pressure (kg/m²) 350
Centrifugal Force (kN) 13
Travel Speed (m/min) 20
Vibrations (m/sec²) 2.48
Weight (Kg) 66.5

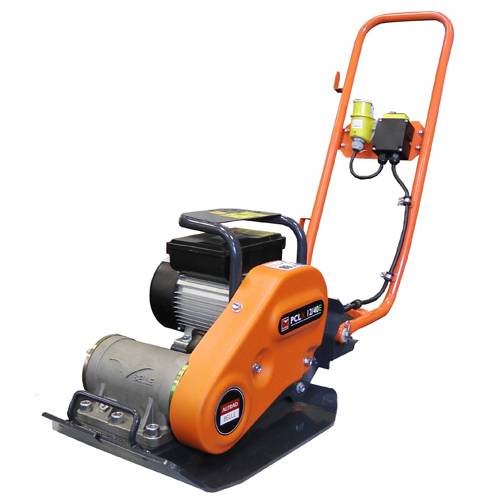

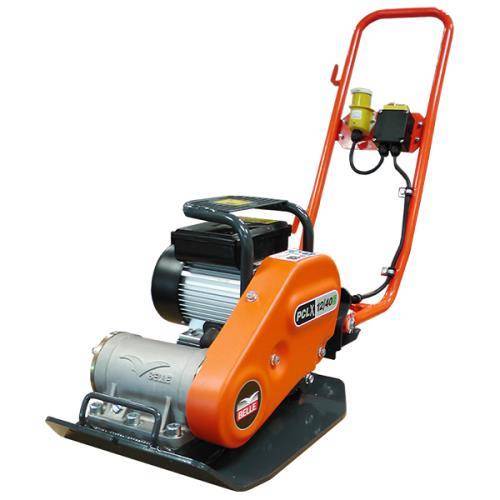

PCLX 12/40E 110v:
Feature Specification
Engine Power (hp) 2
Power (kW) 1.5
Plate Size (WxL) (mm) 380 x 488
Static Pressure (kg/m²) 388
Centrifugal Force (kN) 12
Travel Speed (m/min) 24
Vibrations (m/sec²) 3.97
Weight (Kg) 50
PCLX 12/40E 230v:
Feature Specification
Engine Power (hp) 2
Power (kW) 1.5
Plate Size (WxL) (mm) 380 x 488
Static Pressure (kg/m²) 388
Centrifugal Force (kN) 12
Travel Speed (m/min) 24
Vibrations (m/sec²) 3.97
Weight (Kg) 50

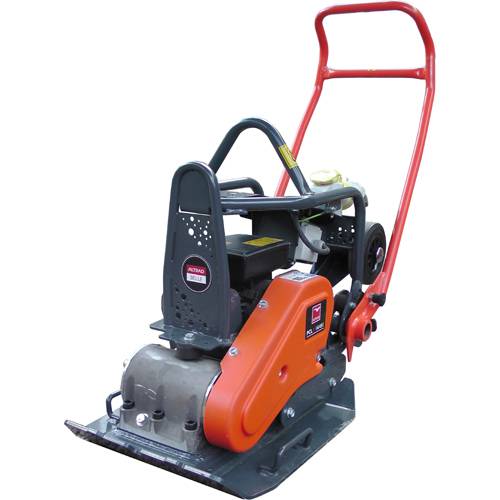

PCLX 16/45E 110v:
Feature Specification
Engine Power (hp) 3
Power (kW) 2.2
Plate Size (WxL) (mm) 450 x 420
Static Pressure (kg/m²) 517
Centrifugal Force (kN) 16
Travel Speed (m/min) 27
Vibrations (m/sec²) 3.04
Weight (Kg) 97

Additional Information

Additional information

Brand	ALTRAD Belle
Model	PCLX 32 (13") – 3.2HP, PCLX 32 "STREETWORKS" (13") – 3.2HP, PCLX 40 (16") – 3.2HP, PCLX 12/40E – 110v 50Hz Electric, PCLX 12/40E – 230v 50Hz Electric, PCLX 16/45E – 110v 50Hz Electric
