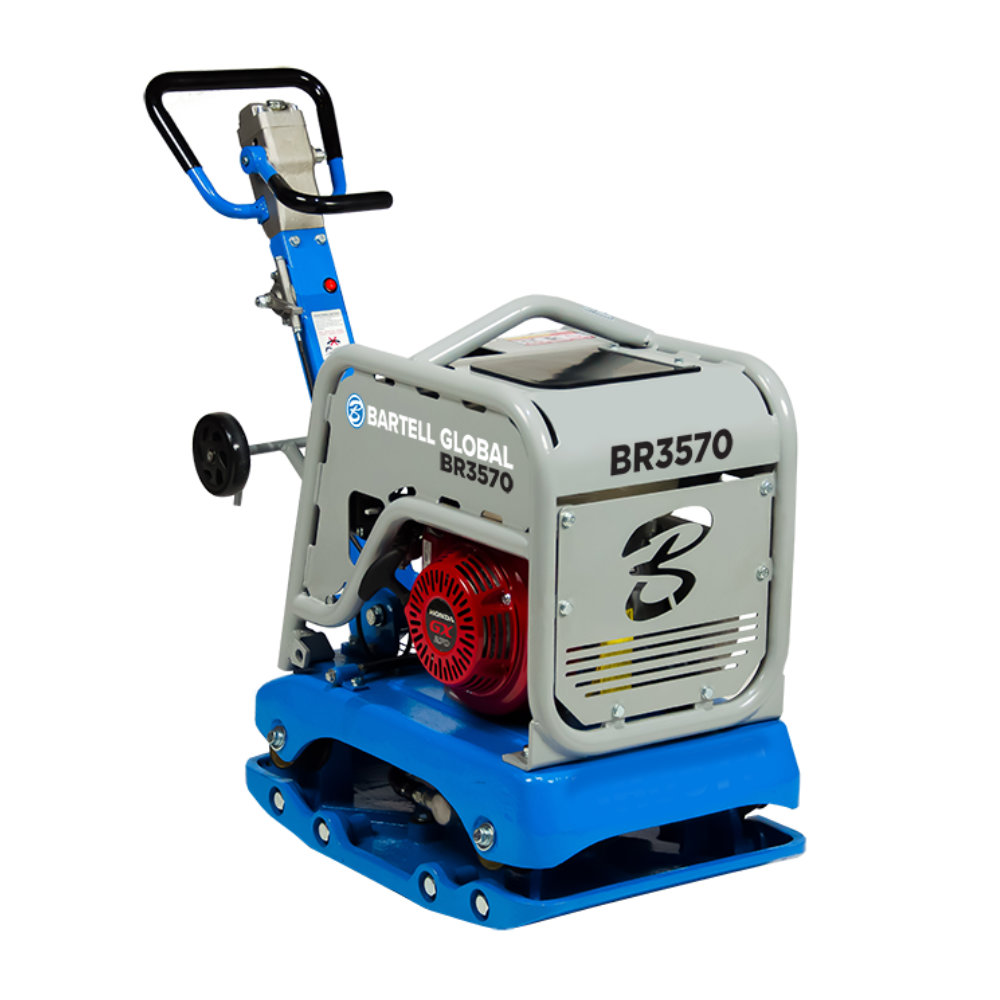

Bartell BR3570 Reversible Plate Compactor

Description

The Bartell BR3570 is a powerful and highly versatile reversible plate compactor, purpose-built for professionals who need heavy-duty compaction performance across larger work areas. Combining excellent maneuverability with high compaction force, it’s ideal for sand, gravel, asphalt, and soil applications — delivering consistent results with minimal effort.

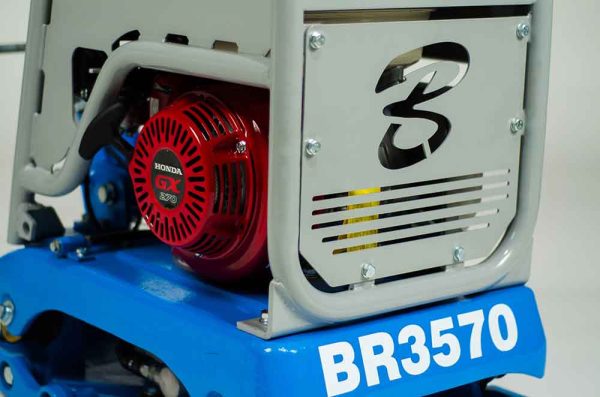

Powered by the proven Honda GX270 8.5 HP (6.3 kW) engine, the BR3570 generates an impressive 7,871 lbf (35 kN) of compaction force, allowing operators to cover larger footprints quickly and effectively. Its fully hydraulic reversing mechanism ensures smooth and precise transitions between forward, reverse, and spot compaction for optimal control and productivity.

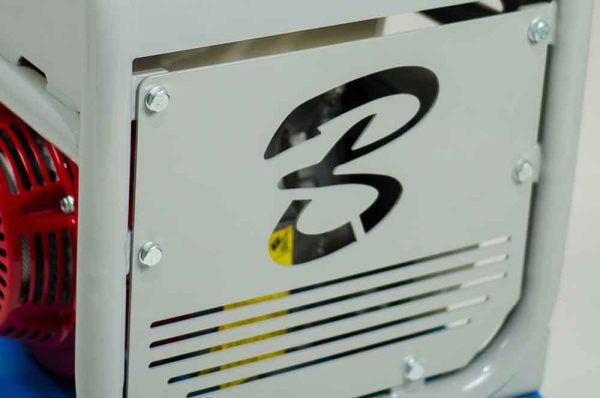

Built to withstand demanding job sites, the BR3570 features a cast aluminum throttle lever for reliable professional use, a full roll cage and cast aluminum belt cover for engine and clutch protection, and a ductile iron base plate for superior durability. Retractable transport wheels make moving the unit easy, while optional extension plates expand working width for faster coverage.

With full-speed operation in both directions and Bartell’s reputation for long-lasting quality, the BR3570 is the perfect balance of strength, precision, and efficiency for professional compaction work.

Key Features

• Honda GX270 engine (8.5 HP / 6.3 kW) for high power and reliability
• 7,871 lbf (35 kN) compaction force for fast, effective results
• Fully hydraulic reversing mechanism for smooth directional control
• Cast aluminum throttle lever for precise, durable operation
• Integrated lifting bale for safe transport and handling
• Full roll cage and aluminum belt cover protect engine and clutch
• Ductile iron base plate increases strength and stability
• Retractable transport wheels for mobility on site
• Optional extension plates increase productivity
• Full-speed operation forward and reverse for maximum efficiency
