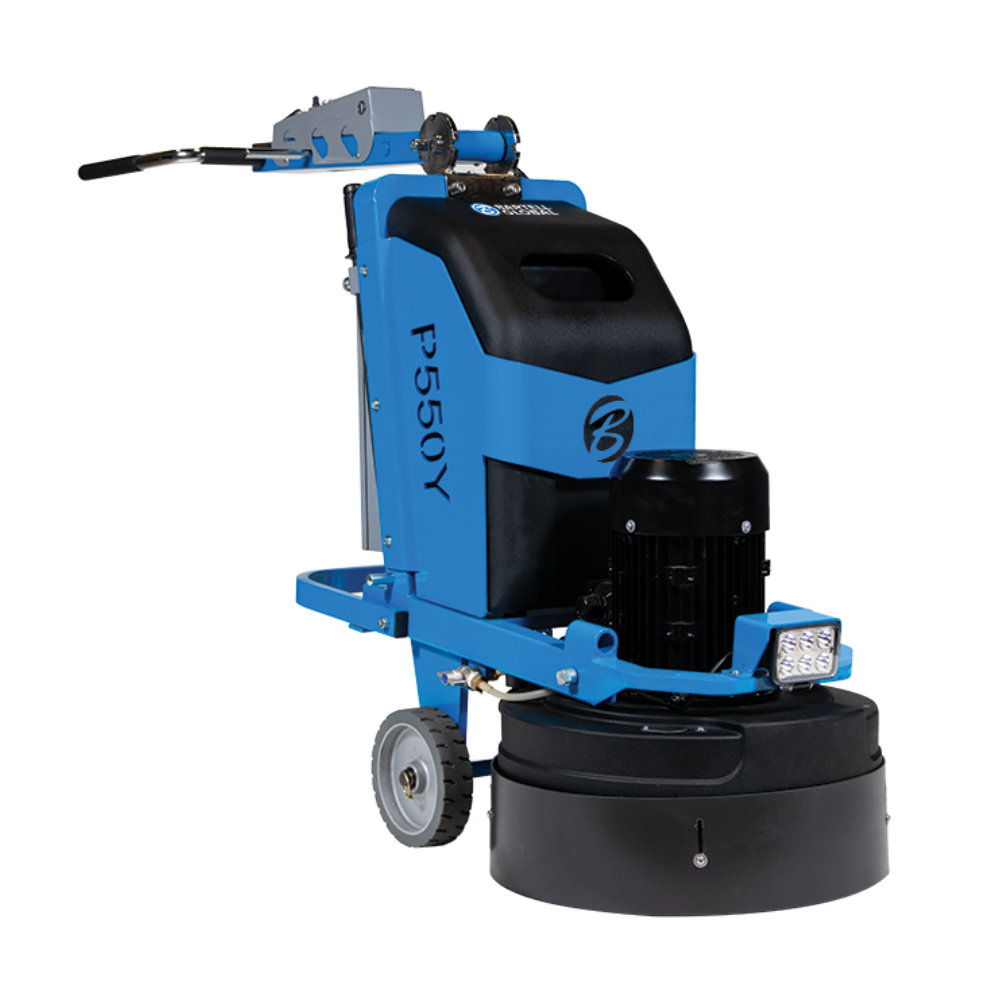

Bartell P550Y Planetary Grinder

Description

The Bartell P550Y is a powerful 22-inch (550 mm) planetary concrete grinder, engineered for high productivity, precision, and durability on demanding commercial and industrial projects. Built with a heavy-duty steel frame and a balanced 3-head planetary design, it delivers exceptional surface results while remaining smooth and easy to operate.

The P550Y features a 5 HP (3.7 kW) single-phase 220V motor with variable speed control, allowing operators to adjust grinding performance from 0–1500 RPM for different surface conditions and materials. The integrated forward/reverse function and height-adjustable handle ensure full control and ergonomic comfort during extended use.

Designed for versatility, the grinder can be fitted with a wide range of tooling for both grinding and polishing applications. The SlideMAG or standard 3-hole plate system enables fast, secure tool changes, while the integrated water tank supports wet grinding operations when required.

For maximum efficiency and dust control, the P550Y pairs perfectly with Bartell’s HD HEPA-filter dust extraction systems, keeping job sites safe, clean, and compliant. Additional features like the bright LED work light, adjustable dust skirt, and 77 lbs (35 kg) of included weights make it an ideal choice for professional surface preparation contractors seeking reliable, consistent performance.

Key Features

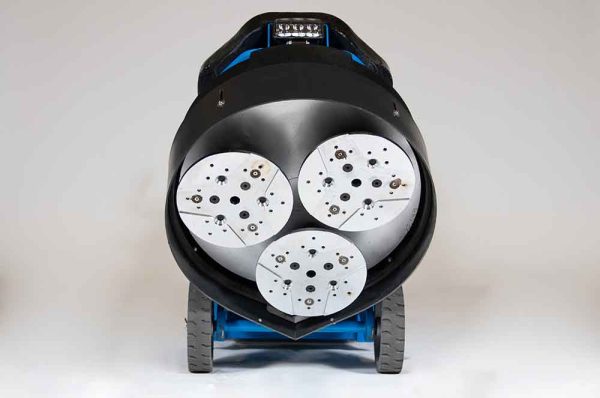

• 22″ (550 mm) grinding width with precision-balanced 3-head planetary design
• 5 HP (3.7 kW) single-phase motor for consistent, powerful performance
• Variable speed control for optimal grinding and polishing versatility
• Forward/reverse operation for enhanced surface control
• Integrated water tank for wet or dry applications
• Heavy-duty steel frame for maximum strength and reliability
• Adjustable handle height for ergonomic operation
• SlideMAG or 3-hole plate system for quick tooling changes
• Bright LED work light for improved visibility
• Adjustable dust skirt for efficient dust extraction
• Additional 35 kg weight included for higher grinding pressure
• Compatible with Bartell HD HEPA dust extractors for a cleaner, safer job site
