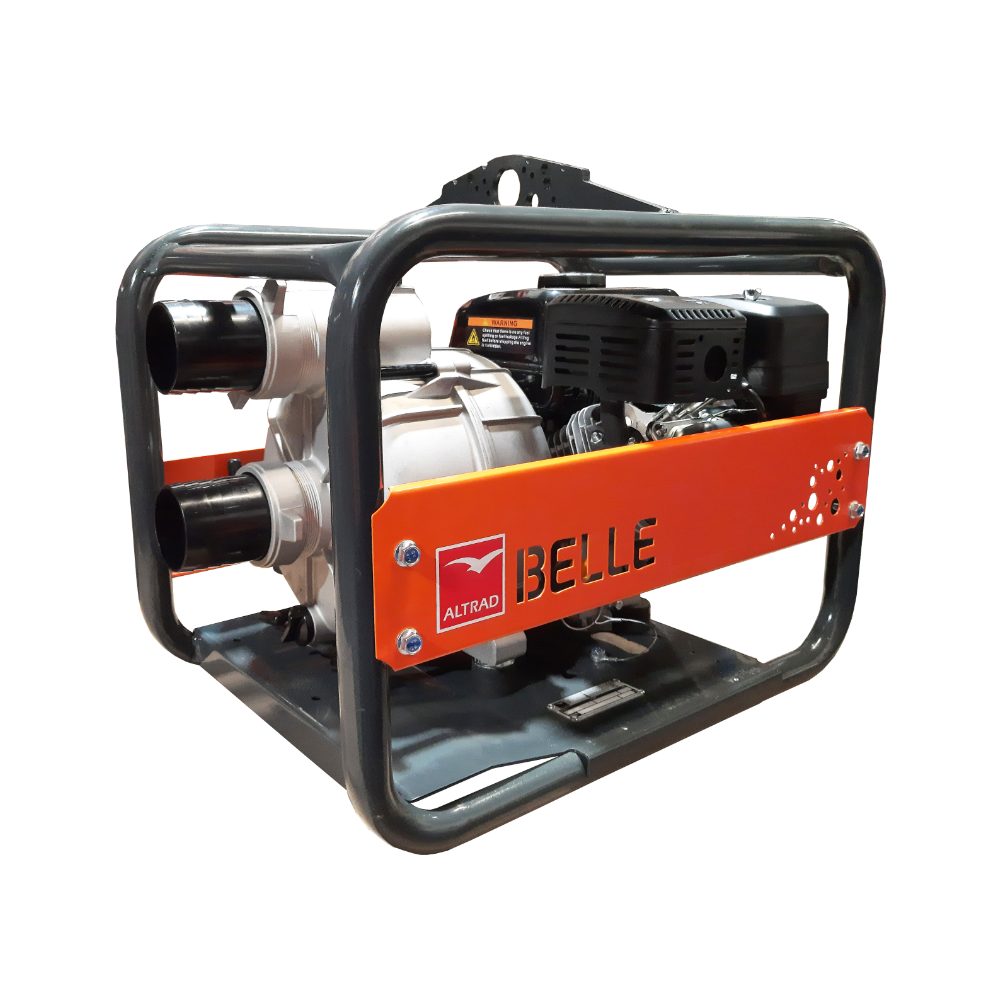

Key Features:
- Suitable for pumping sandy or muddy water and debris up to 1” (25.4mm) in diameter.
- Robust large diameter frame for the harshest conditions.
- Stackable frame design with single-point lifting to reduce environmental impact and minimize manual handling risk. Complete with securing pin for added safety.
- Can be stacked with Altrad Belle GPX 2700 & GPX 3400 Generators.
- Protection belly plate to aid use on soft ground.
- Cast-iron volute and impeller for long life performance and durability.
- High output capacity of 1000 ltr/min.
£638.00 inc VAT
(£531.67 ex VAT)
In Stock
3 Working Days Or Next Day Express. Upgrade options available at checkout.
-
Description
Description
FEATURES & BENEFITS
- Suitable for pumping sandy or muddy water and debris up to 1” (25.4mm) in diameter.
- Robust large diameter frame for the harshest conditions.
- Stackable frame design with single point lifting to reduce environmental impact and minimize manual handling risk. Complete with securing pin for added safety.
- Can be stacked with Altrad Belle GPX 2700 & GPX 3400 Generators.
- Protection belly plate to aid use on soft ground.
- Cast-iron volute and impeller for long life performance and durability.
- High output capacity of 1000 ltr/min.
- Max. head height of 30m for use in a wide range of applications.
- Max. suction lift of 6m.
- Powerful Loncin/Belle G200F petrol engine.
- 3” suction and discharge ports.
- Removeable side guards for ease of access to service points.
- Easy to maintain and remove blockages on-site without tools.
- Customer colour options available.
TECHNICAL SPECIFICATIONS
| Model | WPX 3/30 |
| Part No. | WPX330L01 |
| Dimensions – W x H x L | 432x515x645 (mm) |
| Weight | 44 (kg) |
| Suction Port Dia. | 3 / 80 (In / mm) |
| Discharge Port Dia. | 3 / 80 (In / mm) |
| Max. Suction Lift | 6 (m) |
| Max. Total Head | 30 (m) |
| Max. Flow Rate | 1000 (ltr/min) |
| Engine Model | Loncin/Belle G200F |
| Engine Power | 5.5 / 4.1 (Hp / kW) |
| Displacement | 196 (cc) |
| Fuel Tank Capacity | 3.6 (Ltr) |
| Oil Capacity | 0.6 (Ltr) |
| Sound Power Level | 105 (dB(A)) |
-
