Description

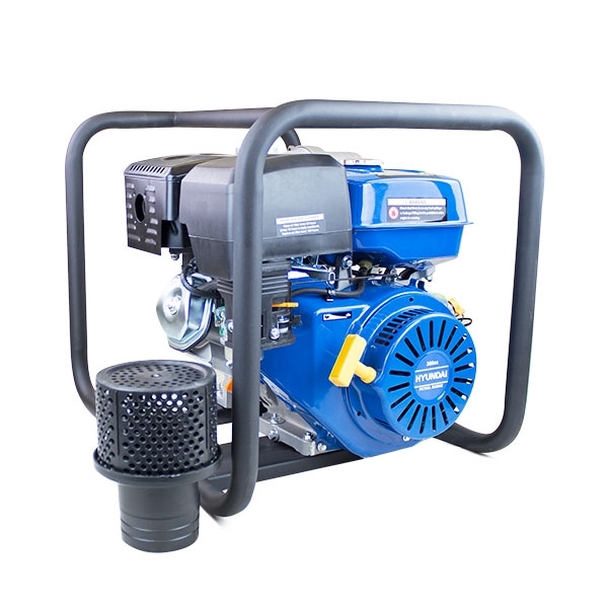

The Hyundai Petrol Water Pump 389cc HY100 is a petrol powered self-priming centrifugal water pump, powered by a 389cc 4-stroke single cylinder petrol engine. The HY100 produces a max output of 13hp.
Hyundai Petrol Water Pump 389cc Features:
Application
Transferring large volumes of water quickly and effortlessly the HY100 is ideal for domestic, commercial and professional pumping applications.
High Flow Rate
The HY100 is ideal for flood defence, construction work or use in commercial sectors where large transfers of water are necessary and provides a maximum flow rate of 1250 litres per minute, allowing a rapid transfer of large pools of clean water.

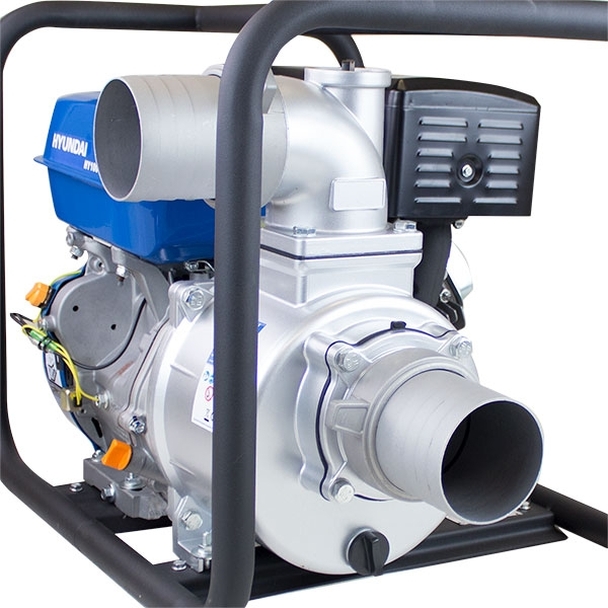

This impressive pumping power is made possible due to the large 4″ (100mm) inlet and outlet and is designed to be used primarily in freshwater, capable of processing solid particles up to 9mm in diameter and providing a suction lift of 7m, and a total lift of 20m.
Lightweight and Portable
The Hyundai Petrol Pump HY100 weighs 41kg, and so is lightweight enough to ensure transportation and storage is as simple as possible. Additionally, the sturdy open frame protects the pump from knocks and bumps and also functions as convenient carry handles.
What Comes in The Box?
- HY100 Petrol Water Pump
- Filter
- Spark Plug Spanner
- User Manual
Hyundai Petrol Water Pump 389cc Specifications:
| Model: | HY100 |
|---|---|
| Engine Model: | IC200 |
| Engine Type: | Hyundai IC390 |
| Engine Size (cc): | 389 |
| Fuel Type: | Petrol |
| Product Type: | Water Pump |
| Start Method: | Recoil |
| Fuel Capacity (L): | 6.5 |
| Impeller Type: | Cast Iron |
| Drive Type: | Direct Drive |
| Engine Oil Capacity (ml): | 1.1 |
| Pump Type: | Aluminium Housing |
| Max Flow Rate (L/min): | 1250 |
| Max Flow Rate (L/hr): | 75000 |
| Inlet (inches/mm): | 4/100 |
| Outlet (inches/mm): | 4/100 |
| Max Solids (mm): | 7 |
| Suction Lift (m): | 7 |
| Total Lift (m): | 2 |
| Fully Assembled Dimensions (H x W x L) (mm): | 550 x 510 x 660 |
| Net Weight (kg): | 41 |
| In The Box: | HY100 Petrol Water Pump, Filter, Spark Plug Spanner & User Manual |
Questions?
If you have any questions regarding the Hyundai HY100 Petrol Water Pump, contact us and a member of trained staff will be able to answer any questions that you may have.
