Description
The Hyundai Petrol Water Pump 163cc is a petrol powered self-priming centrifugal water pump, powered by a Hyundai IC160 petrol engine that produces 5.5hp. This pump is suitable for domestic, commercial and professional pumping applications.

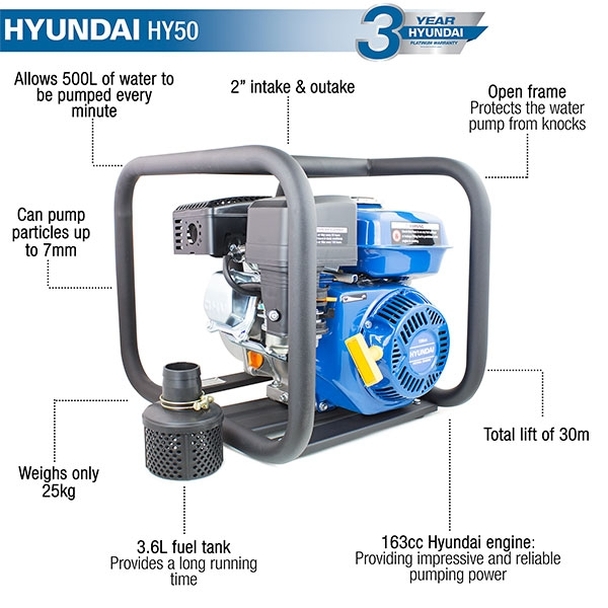

Hyundai Petrol Water Pump 163cc Features:
500 Litres per Minute
The HY50 is capable of pumping a maximum flow rate of 500 litres per minute. It is the perfect clean water pump for rapidly transferring large quantities of water fast and efficiently. This impressive pumping power is possible due to the large 2” (50mm) inlet and outlet.
Ideal Use
The Hyundai HY50 is best suited to construction sites, commercial work and emergency flood defence where large transfers of water are necessary. The HY50 can pump particles up to 5mm in diameter, and provides a suction lift of 7m, and a total lift of 30m.
The pump is a freshwater pump and as such is not suitable for use with seawater or other chemicals as this may cause damage to the internal components over time.
Portable Pump
Weighing only 25kg, the HY50 is a lightweight open frame water pump and is built with storage and transportation in mind. Additionally, the sturdy open frame protects the pump from knocks and bumps and also functions as convenient carry handles.
Hyundai Petrol Water Pump 163cc Specifications:
| Model: | HY50 |
|---|---|
| Engine Type: | Hyundai IC160 – 4-Stroke |
| Engine Model: | IC160 |
| Engine Size (cc): | 163 |
| Maximum Power @ 3600rpm (hp/kw): | 5.5/4.2 |
| Fuel Type: | Petrol |
| Start Method: | Recoil |
| Pump Type: | Aluminium Housing |
| Water Type: | Clean |
| Fuel Capacity (L): | 3.6 |
| Impeller Type: | Cast Iron |
| Drive Type: | Direct Drive |
| Engine Oil Capacity (ml): | 0.6 |
| Max Flow Rate (L/min): | 500 |
| Max Flow Rate (L/hr): | 30000 |
| Inlet (inches/mm): | 2/50 |
| Outlet (inches/mm): | 2/50 |
| Max Solids (mm): | 9 |
| Suction Lift (m): | 7 |
| Total Lift (m): | 30 |
| Fully Assembled Dimensions (H x W x L): | 435 x 405 x 520 |
| Net Weight (kg): | 25 |
What Comes in The Box?
- HY50 Petrol Water Pump
- Filter
- Spark Plug Spanner
- User Manual
Questions?
If you have any questions regarding the Hyundai Petrol Water Pump 163cc HY50, contact us and our experienced staff will be happy to answer any questions you have.
